Multipoint Diamond Dressers

We are Manufacturer, Supplier, Exporter of Multipoint Diamond Dressers, Indexable Inserts, Honing Stones, Matrix Chisel Diamond Dressers, Diamond Dressers, Diamond Fingers and Gauging Points, Honing Stones, Electroplated Diamond Tools, Honing Stones, PCD Tools and CBN Tools from Aurangabad, Maharashtra, India. We provide these whole range of Products to WORLDWIDE.

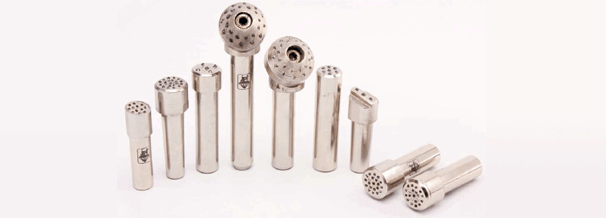

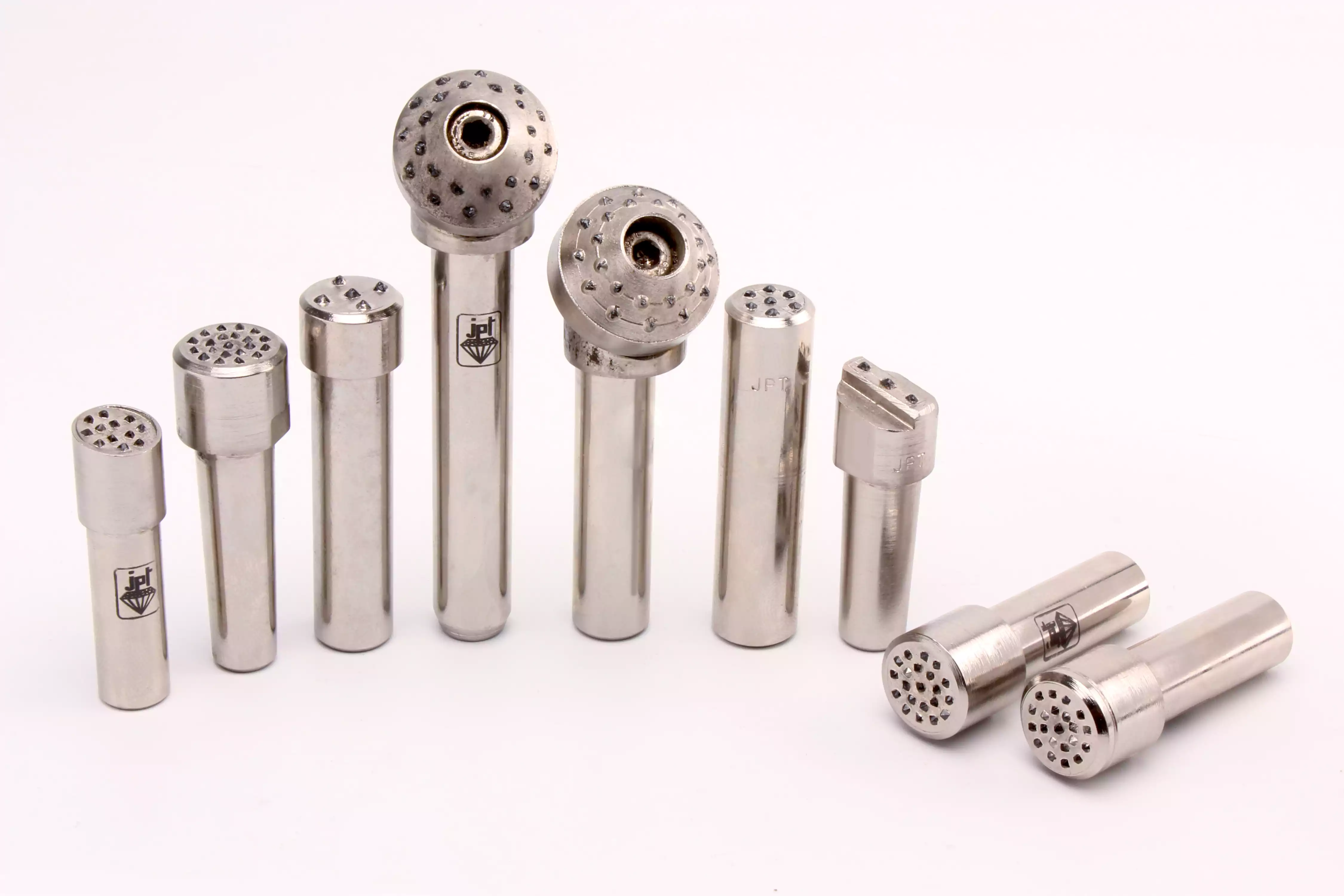

Multi Point Diamond Dressers manufactured by JPT is fixed with number of natural diamonds of a quality crystal character fixed into a special wear resistant bond. The diamonds are arranged in different pattern in single layer or multiple layers, depending upon the field of operation. The contact between diamond point and wheel face reduces the unit pressure on each point resulting in a longer tool life with full utilization. Multipoint Diamond Dressers are used for large wide grinding wheels.

Advantages :

No resetting
No re-lapping
Maintenance free
Higher output
Longer service life

Application Tips :

Set the multipoint tool into the center of the grinding wheel.
Depth of cut should not exceed more than 0.01-0.04 mm
Use plenty of coolant to increase the tool life.
The mounting must be vibration free, with the clamping length as short as possible.

Multi Point Diamond Dressers Manufacturer

High-Performance Multi Diamond Dressing Tools for Precision Grinding Wheel Conditioning Applications

JPT Multi Point Diamond Dressers are precision-engineered grinding wheel dressing tools manufactured using carefully selected natural diamond crystals mounted in a special wear-resistant metallic matrix for high-efficiency wheel truing, conditioning, sharpening, and profile maintenance operations.

These tools are specifically designed for dressing large-width grinding wheels, high-production grinding systems, and continuous industrial grinding applications where longer tool life, consistent wheel conditioning, and superior dressing efficiency are essential.

The diamonds are strategically arranged in single-layer or multi-layer configurations depending upon the grinding application, wheel specification, and operational requirements. The multi-point contact design distributes dressing forces uniformly across several diamond cutting points, significantly reducing unit pressure per diamond and ensuring superior wear distribution and maximum diamond utilization.

Product Features

Multi-Diamond Cutting Configuration

Manufactured using:

Premium natural diamond crystals
Selected high-strength industrial diamonds
Precision geometric arrangement
Wear-resistant bonding matrix

Available in:

Single-layer configuration
Multi-layer configuration
Straight pattern arrangement
Staggered diamond pattern arrangement

Uniform Load Distribution

The multiple active diamond points:

Distribute dressing forces evenly
Reduce localized thermal loading
Minimize diamond fracture risk
Increase operational stability

Resulting in:

Longer dresser life
Improved dressing consistency
Stable wheel conditioning

High Dressing Efficiency

Multi-point engagement provides:

Larger wheel contact area
Faster dressing cycles
Reduced dressing time
Improved production efficiency

Superior Wheel Profile Maintenance

The controlled diamond arrangement ensures:

Accurate wheel geometry
Uniform wheel sharpness
Stable grinding wheel topography
Reduced wheel runout

Technical Advantages

No resetting required
No re-lapping necessary
Maintenance-free operation
High production output
Extended operational life
Excellent wear resistance
Stable wheel conditioning
Improved dressing repeatability
Lower dressing cost per component
Reduced grinding downtime

Working Principle

Multi Point Diamond Dressers operate by:

Simultaneously engaging multiple diamond cutting points with the grinding wheel
Removing loaded abrasive particles
Restoring wheel sharpness
Correcting wheel geometry
Reconditioning wheel cutting surfaces

The distributed contact system:

Minimizes concentrated stress
Reduces wheel shock loading
Improves wheel surface uniformity
Enhances grinding process stability

Applications

Grinding Wheel Dressing

Used for:

Wheel truing
Wheel conditioning
Wheel sharpening
Surface restoration
Profile correction

Large Width Grinding Wheels

Especially suitable for:

Wide grinding wheels
High-contact grinding applications
Continuous production grinding

Precision Grinding Operations

Ideal for:

Surface grinding
Cylindrical grinding
Centerless grinding
CNC profile grinding
Form grinding
Tool & cutter grinding

Industrial Applications

Automotive Industry

Used in grinding operations involving:

Crankshafts
Camshafts
Bearing races
Transmission components
Precision shafts

Bearing Industry

Suitable for:

Raceway grinding
Ring grinding
High-volume bearing production

Tool Manufacturing Industry

Applied in:

Carbide tool grinding
Drill grinding
End mill production
Reamer manufacturing

Aerospace Industry

Used for:

Precision aerospace components
Turbine shaft grinding
Superalloy grinding applications

General Engineering Industry

Suitable for:

Heavy-duty grinding
Precision component finishing
Production grinding systems

Hard Material Applications

Multi Point Diamond Dressers are highly effective for grinding wheels used on:

Tungsten Carbide
Hardened Steel
Ceramics
Cermets
Superalloys
Tool Steels
High-Speed Steel (HSS)

Machine Compatibility

Compatible with:

Surface Grinding Machines
Cylindrical Grinding Machines
Centerless Grinding Machines
CNC Grinding Machines
Tool & Cutter Grinding Machines
Roll Grinding Machines
Form Grinding Machines
Automatic Grinding Systems

CNC & Automatic Grinding Applications

Widely used in:

CNC automated dressing systems
High-speed production grinding
Continuous wheel conditioning operations

The multi-point design ensures:

Consistent wheel profile generation
Stable automated dressing
Reduced operator intervention

Operating Recommendations

Tool Positioning

For optimum performance:

Set the dresser at the center line of the grinding wheel
Maintain accurate alignment
Ensure rigid machine setup

Recommended Dressing Infeed

Typical dressing depth per pass:

0.01–0.04 mm/pass

Depending upon:

Wheel specification
Bond type
Wheel hardness
Surface finish requirement

Coolant Application

Use abundant and continuous coolant flow to:

Improve thermal stability
Extend dresser life
Reduce diamond wear
Improve dressing quality

Coolant should:

Reach the contact zone before engagement
Remain uninterrupted during operation

Rigid Mounting

The mounting arrangement must be:

Vibration-free
Rigidly clamped
Minimum overhang design

Proper mounting ensures:

Accurate wheel profile
Reduced chatter
Stable dressing action
Longer tool life

Performance Benefits

Even Wear Distribution

Multiple active points provide:

Uniform diamond wear
Stable cutting action
Extended service life

Improved Productivity

Faster wheel conditioning
Reduced dressing cycle time
Higher machine utilization

Superior Grinding Performance

Proper wheel conditioning improves:

Surface finish quality
Grinding accuracy
Wheel cutting efficiency
Process consistency

Why Choose JPT Multi Point Diamond Dressers

Manufactured using selected natural diamonds
Precision-engineered diamond arrangement
Excellent wear resistance and durability
High dressing efficiency
Long operational life
Stable wheel profile retention
Suitable for heavy-duty production grinding
Strict quality inspection and diamond selection standards

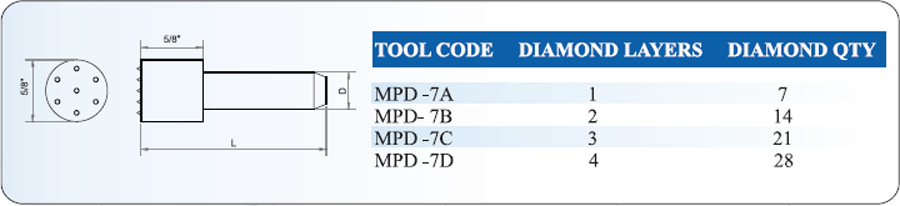

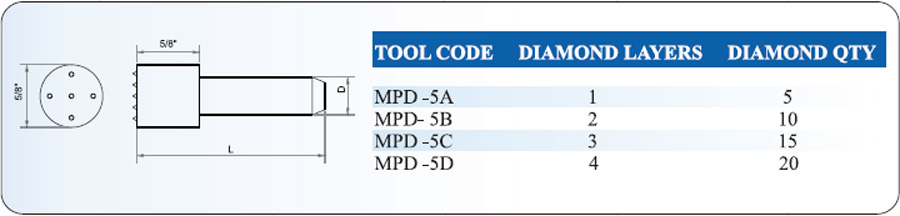

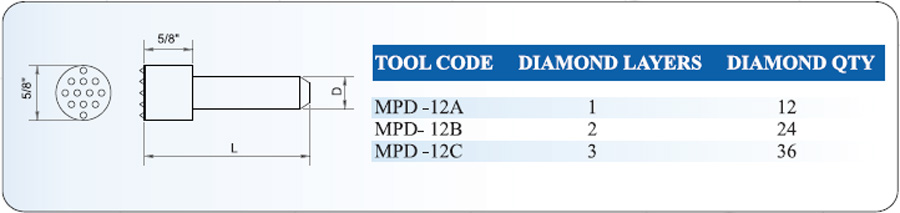

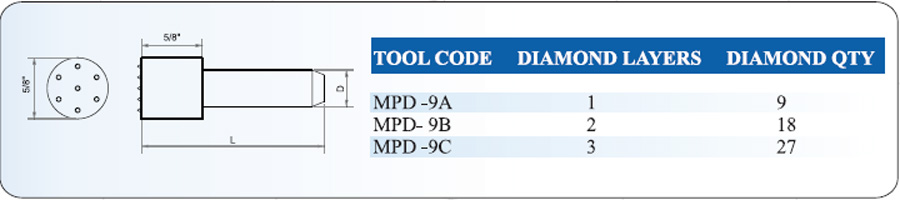

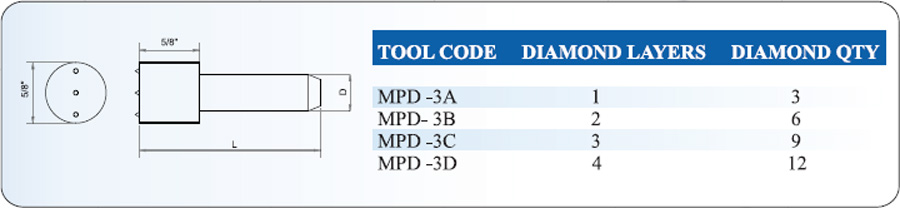

Available Configurations

Single Layer Multi Point Dressers
Multi Layer Diamond Dressers
Straight Pattern Dressers
Circular Pattern Dressers
Flat Type Dressers
Custom Mounting Configurations
CNC Dressing Assemblies

Custom diamond arrangement, bond design, shank dimensions, and dressing geometries available as per customer grinding application and machine requirements.
