Circlip Groove Tools – PCD & CBN Precision Cutting Solutions

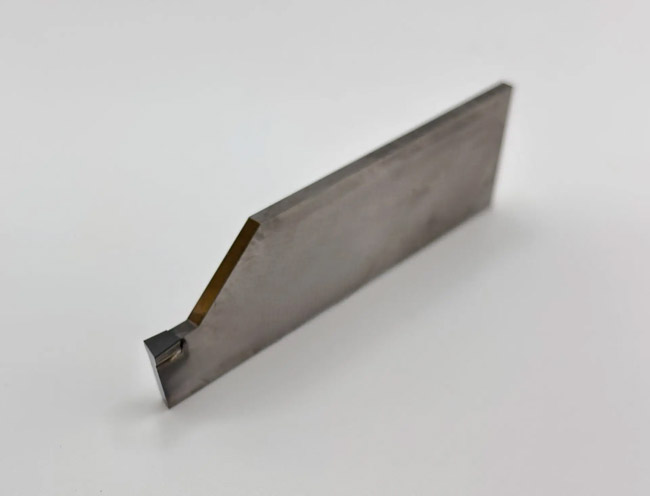

High-Performance Circlip Groove Turning Tools
Engineered for precision grooving and circlip seat machining, our Circlip Tools are manufactured using premium-grade PCD (Polycrystalline Diamond) and CBN (Cubic Boron Nitride) cutting materials for superior dimensional accuracy, extended tool life, and high production efficiency.
Designed for CNC turning centers, special purpose machines, and high-speed production environments, these tools provide exceptional surface finish and repeatable groove geometry for internal and external circlip applications.
Technical Features
- Precision manufactured PCD & CBN cutting edges
- Optimized geometry for burr-free groove generation
- High wear resistance for long production cycles
- Superior edge retention under continuous machining
- Reduced machine downtime and indexing frequency
- Excellent dimensional consistency in mass production
- Available in Right-Hand (R) and Left-Hand (L) cutting configurations
- Custom nose radius and cutting widths available
- Tailor-made shank dimensions as per machine requirement
- Suitable for dry and coolant machining applications
Available Configurations
Standard Options
- Internal Circlip Groove Tools
- External Circlip Groove Tools
- Single Edge Grooving Tools
- Multi-Edge Profile Tools
- Form Groove Tools
- Custom Profile Circlip Tools
Cutting Material Options
- PCD Grade – For non-ferrous and abrasive materials
- CBN Grade – For hardened steels and ferrous materials
Technical Parameters
| Parameter | Specification |
|---|---|
| Cutting Material | PCD / CBN |
| Tool Type | Internal / External Grooving |
| Cutting Direction | Right Hand (R) / Left Hand (L) |
| Nose Radius | Standard & Special Radius Available |
| Cutting Edge Width | Standard & Custom Widths |
| Shank Type | Square / Round / Special |
| Surface Finish Capability | High Precision Finishing |
| Application Type | CNC Turning & Production Machining |
Applications
Our Circlip Groove Tools are widely used in precision engineering industries for machining retaining ring grooves and locking profiles in:
- Automotive Components
- Hydraulic Parts
- Bearing Components
- Transmission Shafts
- Gearbox Components
- Aerospace Precision Parts
- Pump & Valve Components
- Medical Engineering Components
- Precision Ground Shafts
- Heavy Engineering Industries
Machining Compatibility
Recommended for Machining of:
PCD Tools
- Aluminium Alloys
- Copper & Brass
- Graphite
- Tungsten Carbide
- Composite Materials
- Non-Ferrous Alloys
CBN Tools
- Hardened Steel
- Tool Steel
- Bearing Steel
- Cast Iron
- Powder Metallurgy Components
- Heat-Treated Components up to 65 HRC
Performance Advantages
- Higher productivity with increased cutting speeds
- Lower tooling cost per component
- Excellent groove accuracy and concentricity
- Reduced burr formation
- Consistent performance in automated production
- Improved component quality and repeatability
Ordering Information
While placing an order, please specify:
- Tool Type (Internal / External)
- PCD or CBN Grade Required
- Right-Hand (R) or Left-Hand (L) Cutting
- Groove Width
- Nose Radius Requirement
- Shank Dimensions
- Component Material
- Drawing or Application Details
Custom Manufacturing Solutions
We also manufacture special-purpose Circlip Groove Tools as per customer drawings, machine specifications, and production requirements.
Special Options Available on Request
- Special Tool Nose Radius
- Customized Cutting Edge Width
- Special Shank Design
- Multi-Step Groove Profiles
- Coolant Through Designs
- High Precision Mirror Finish Edges
Precision Engineered for High Accuracy Machining
With advanced manufacturing capabilities and decades of expertise in superabrasive tooling, we deliver reliable and high-performance Circlip Groove Tools for demanding industrial applications and high-volume production environments.
