Imprignated Grit Type Diamond Dressers

High-Performance Multi-Point Diamond Dressing Tools for Precision Grinding Applications

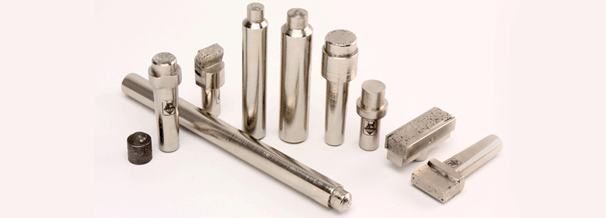

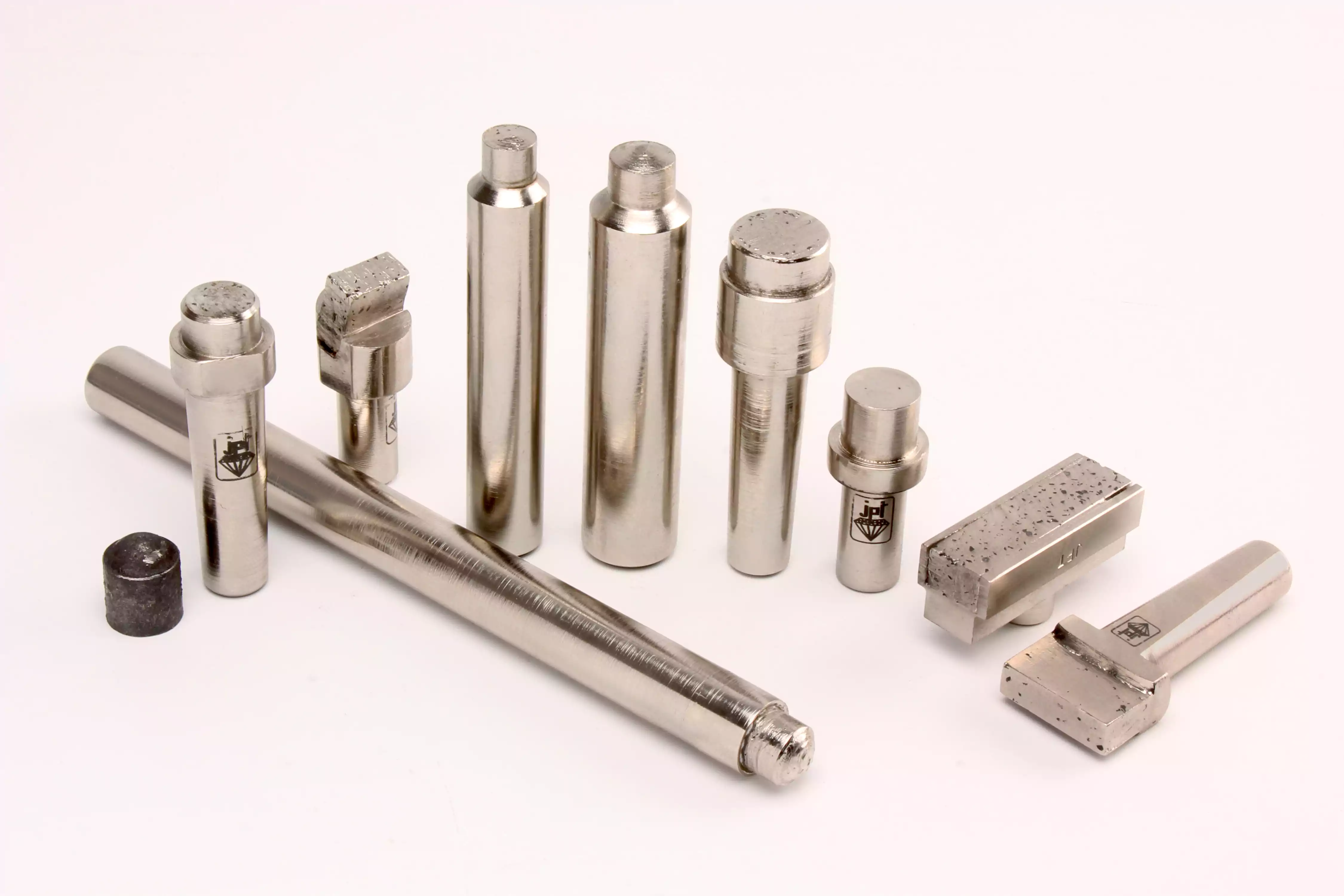

Impregnated Diamond Dressers are advanced multi-point diamond dressing tools manufactured by uniformly embedding high-quality natural and synthetic crushed diamond grits into a specially engineered sintered metallic bond matrix. These tools are designed for precision truing, dressing, conditioning, and profiling of grinding wheels used in high-accuracy grinding operations.

The dressing action is performed simultaneously by numerous exposed diamond cutting points distributed throughout the impregnated matrix structure. As the bond matrix gradually wears during operation, fresh diamond particles are continuously exposed, ensuring consistent dressing performance, stable wheel conditioning, and extended tool life.

Impregnated Diamond Dressers are particularly suitable for fine-grit grinding wheels, delicate wheel structures, precision profile grinding, and applications requiring superior surface finish quality and tight dimensional tolerances.

Diamond Grit Structure

The working layer contains:

• Natural crushed diamond grits
• Synthetic diamond particles
• Multi-layer random diamond distribution
• Controlled diamond concentration for uniform wear characteristics

The diamond particles are impregnated within a wear-resistant sintered metallic matrix that provides:

• Controlled bond wear
• Continuous self-sharpening action
• Stable dressing characteristics
• Extended operational life

During the dressing process:

• Multiple diamond particles simultaneously engage the grinding wheel surface
• The matrix gradually wears and exposes new cutting edges
• Wheel glazing, loading, and bond smearing are effectively removed
• Grinding wheel geometry and cutting efficiency are restored continuously

This multi-point dressing mechanism ensures:

• Uniform wheel conditioning
• Reduced wheel damage
• Superior dressing consistency
• Improved grinding stability

Continuous Self-Sharpening Action

• Fresh diamond particles are continuously exposed
• Maintains consistent dressing efficiency throughout tool life
• Eliminates sudden dressing performance deterioration

High Wear Resistance

• Superior resistance against abrasive wear
• Long operational life under continuous production conditions
• Excellent thermal stability

Uniform Dressing Performance

• Multiple cutting points ensure balanced dressing action
• Reduced wheel chatter and vibration
• Improved grinding wheel concentricity

Excellent Surface Finish Capability

Especially suitable for:

• Fine grit grinding wheels
• Sensitive grinding applications
• Precision surface finish requirements
• Ultra-fine wheel conditioning

For optimum dressing performance:

Diamond Grit Size ≥ 2 × Grinding Wheel Grain Size

Recommendation

The impregnated diamond grit size should be at least double the grinding wheel abrasive grain size to achieve:

• Efficient wheel penetration
• Stable dressing action
• Improved wheel sharpness
• Optimum dressing ratio

Higher diamond concentration tools are recommended for:

• Heavy-duty dressing
• Continuous production grinding
• Large wheel contact areas
• Hard wheel bond structures

Reduced Dressing Time

• Faster wheel conditioning
• Higher machine productivity
• Reduced machine downtime

Full Utilization of Tool

• Tool remains effective until the final exposed diamond particle
• Maximized usable dressing life
• Improved cost efficiency

Reduced Setup & Tool Change Time

• Longer operational intervals
• Less frequent dresser replacement
• Improved production continuity

Lower Initial Dressing Cost

• Economical solution for large-scale production
• Reduced dressing cost per component

Superior Process Stability

• Consistent wheel geometry
• Uniform dressing action
• Improved grinding repeatability

Grinding Wheel Types

Bond Types

• Resin Bond Grinding Wheels
• Vitrified Bond Grinding Wheels
• Rubber Bond Grinding Wheels
• Metal Bond Grinding Wheels

Special Abrasive Wheels

• Boron Carbide Grinding Wheels
• Fine Grit Precision Wheels
• Thread Grinding Wheels
• V-Profile Grinding Wheels
• Profiled Form Wheels

Grinding Applications

• Surface Grinding
• Cylindrical Grinding
• Centerless Grinding
• Internal Grinding
• Thread Grinding
• Profile Grinding
• Form Grinding
• CNC Precision Grinding

Machine Compatibility

Suitable for use on:

• Surface Grinding Machines
• Cylindrical Grinding Machines
• Centerless Grinding Machines
• CNC Grinding Machines
• Thread Grinding Machines
• Tool & Cutter Grinding Machines
• Form Grinding Machines
• Automatic Wheel Dressing Systems

Automotive Industry

Used in grinding operations involving:

• Transmission components
• Engine parts
• Fuel injection systems
• Bearing races
• Precision shafts

Aerospace Industry

Suitable for:

• Turbine component grinding
• Aerospace alloy machining
• High-temperature superalloy grinding
• Precision aerospace assemblies

Tool & Die Industry

Applied in:

• Mold and die manufacturing
• Carbide tool grinding
• Precision tooling operations
• Form tool production

Precision Engineering Industry

Used for:

• High-tolerance component grinding
• Fine surface finish applications
• Precision mechanical assemblies

Ceramic & Hard Material Grinding

Effective for dressing wheels grinding:

• Ceramics
• Carbides
• Composite materials
• Hardened steels
• Cermets

Coolant Application

A continuous coolant flow is recommended to:

• Minimize thermal loading
• Improve dressing stability
• Extend tool life
• Prevent grinding wheel damage

Proper Tool Mounting

Ensure:

• Rigid clamping
• Correct alignment
• Minimal vibration during operation

Improper mounting may result in:

• Profile inaccuracies
• Uneven dressing
• Reduced tool performance

Dressing Parameters

Optimal dressing performance depends upon:

• Grinding wheel specification
• Bond hardness
• Wheel speed
• Dressing depth
• Material being ground

Controlled dressing parameters improve:

• Grinding efficiency
• Surface finish quality
• Wheel sharpness
• Process repeatability

• Manufactured using premium natural & synthetic diamond grits
• Precision-controlled sintered matrix technology
• Excellent wear resistance and thermal stability
• Consistent multi-point dressing action
• Long service life with superior dressing efficiency
• Custom specifications available for specialized applications
• Suitable for high-precision industrial grinding environments

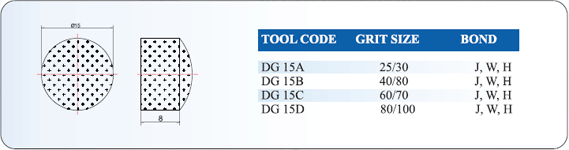

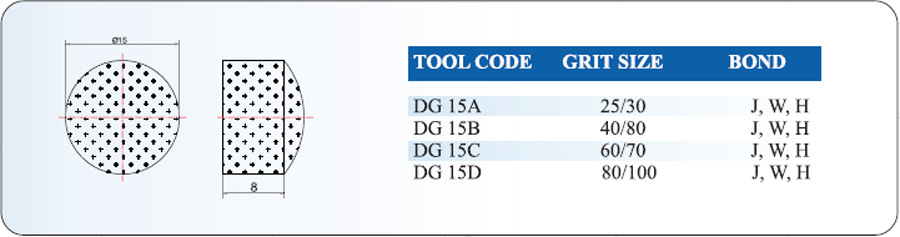

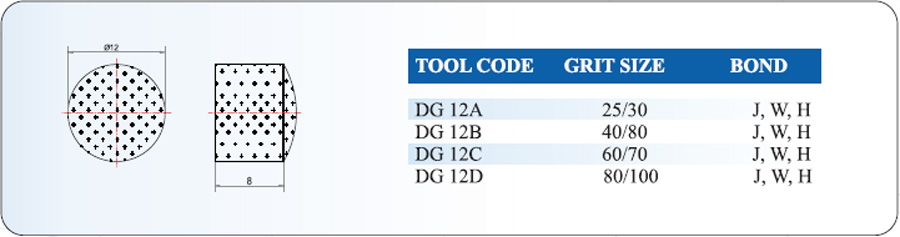

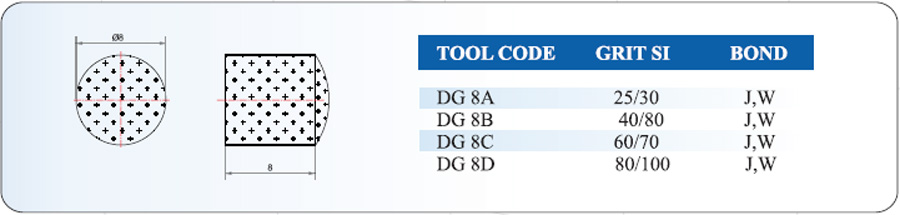

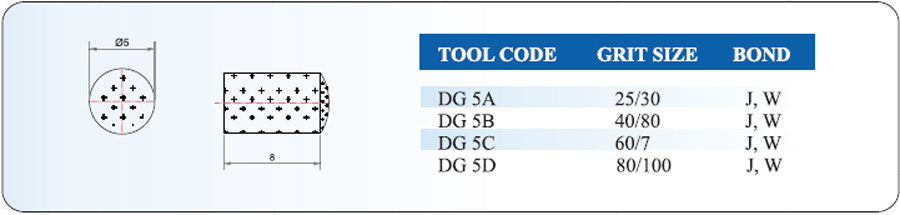

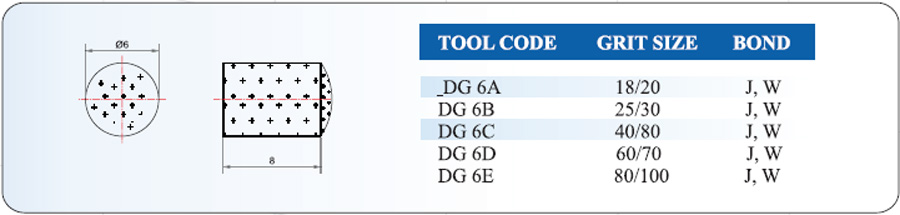

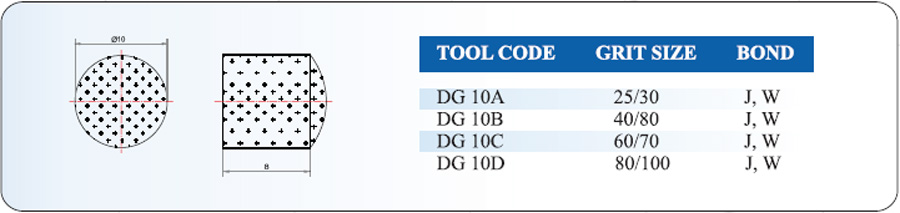

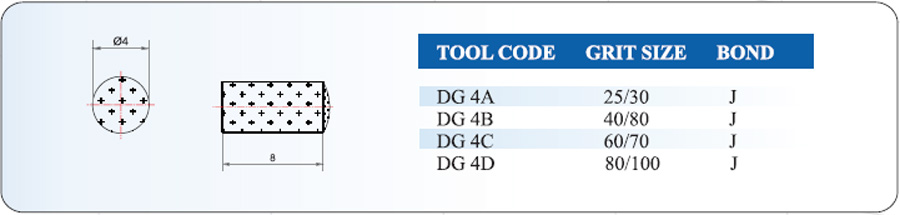

• Cylindrical Impregnated Dressers

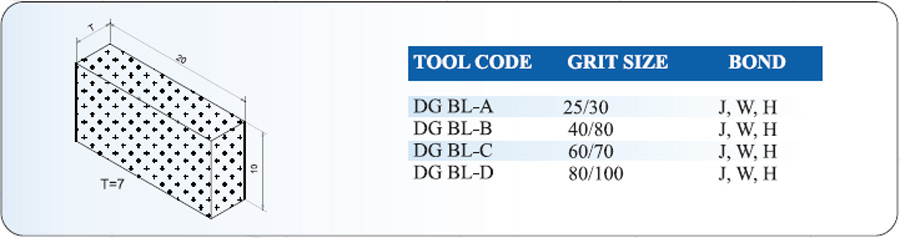

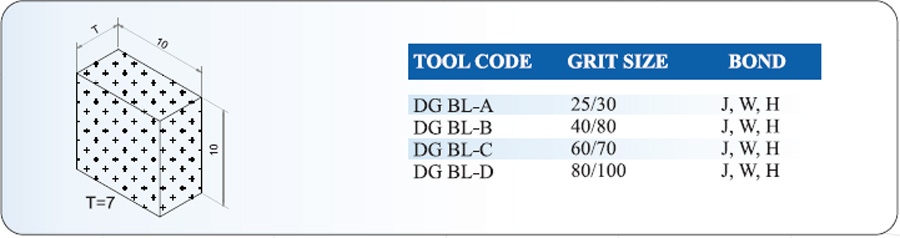

• Flat Face Impregnated Dressers
• Radius Profile Dressers
• Thread Grinding Dressers
• V-Profile Dressing Tools
• Custom Multi-Point Diamond Configurations

Custom dimensions, diamond concentrations, bond structures, and mounting styles available as per customer application requirements.
