Diamond / CBN Grinding Wheels
We are Manufacturer, Supplier, Exporter of Diamond Grinding Wheels, CBN Grinding Wheels For Industries in Aurangabad, Maharashtra, India.

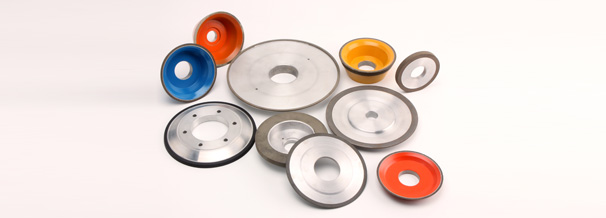

JPT produces Resin / Metal Diamond Wheel that is used for maximum performance which reduces production time and increases profits. These wheels help in cutting and grinding various material efficiently and at the lowest possible cost. Bond matrixes are available for dry, mist & flood applications and their advanced bonding technology provides faster cutting and grinding.
Application of Resin Bonded Wheels / Metal Bond Wheels :Precision grinding cylindrical, centerless, surface and internal grinding of carbide tools, cutters, dies, gauges, etc. grinding chip breaker grooves Grinding threads in carbide taps and gages Sharpening carbide reamers, drills, inserted tooth milling cutters, etc. Cut - off, slitting, cutting, sintered carbide to size where fast cutting is important. Hand Grinding Sharpening single point tools where fast cutting action is required. Grinding new carbide single point tools on a production basis.

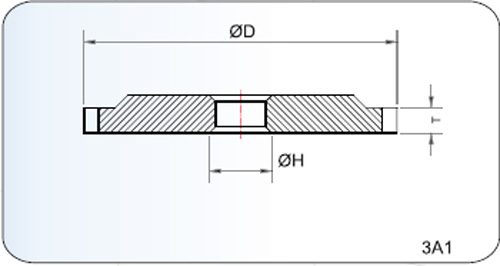

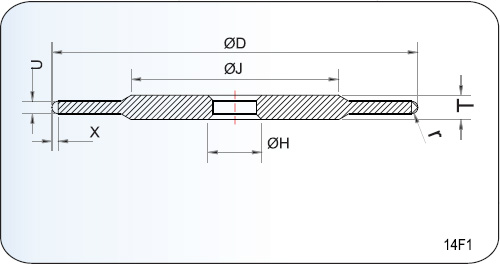

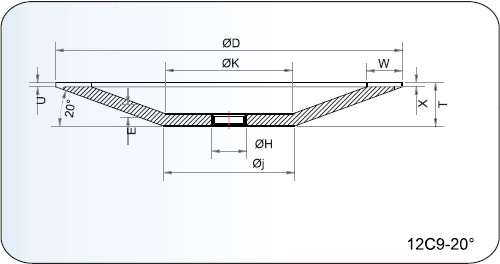

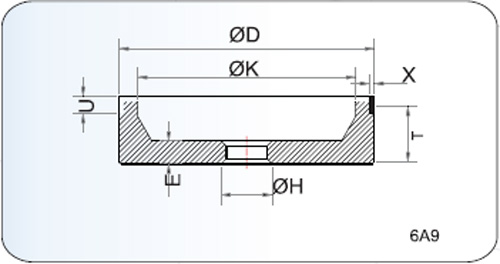

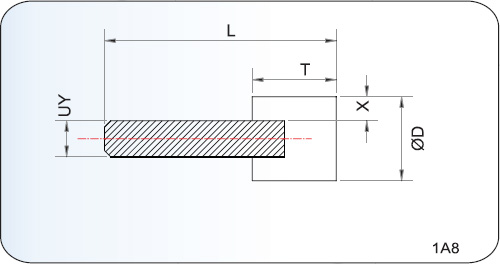

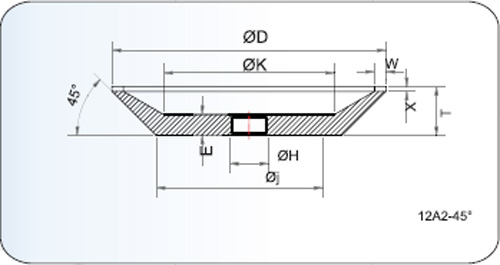

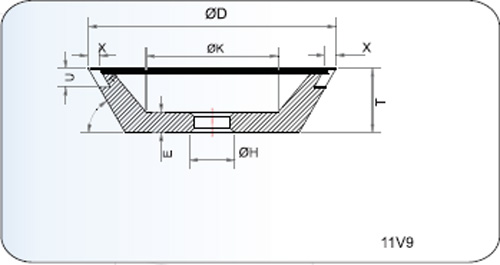

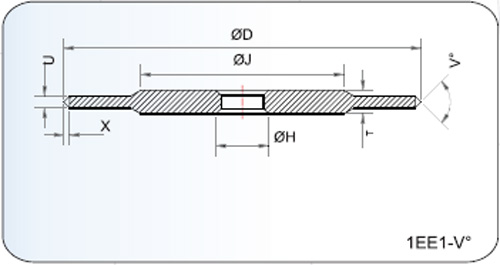

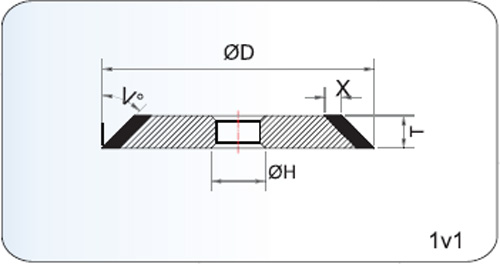

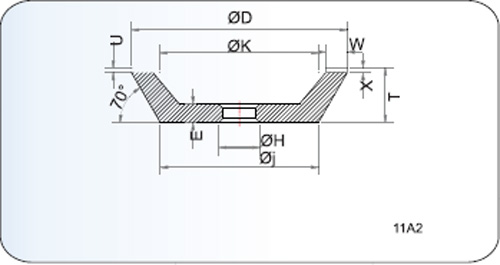

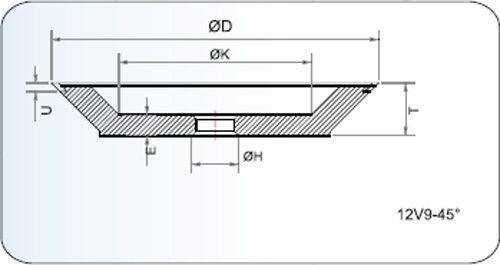

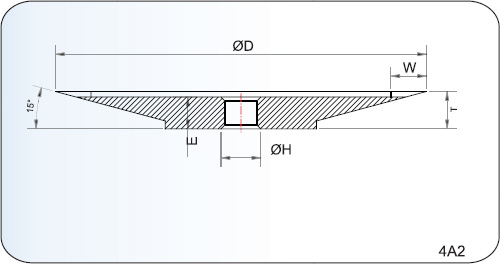

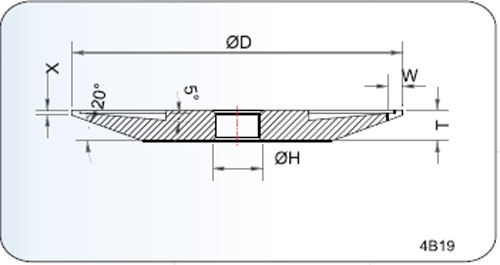

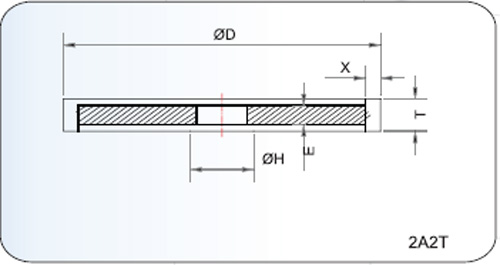

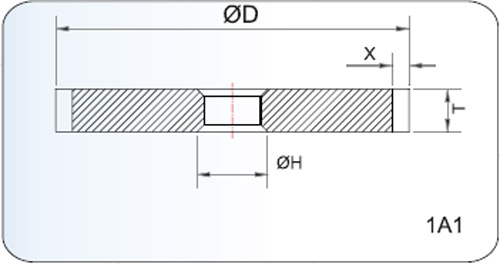

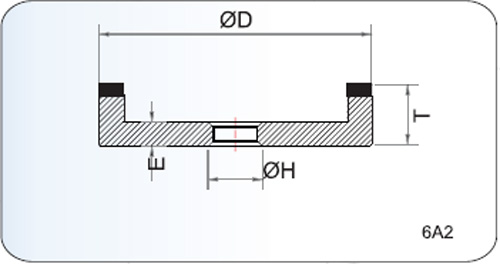

Technical Drawings
How to Order Grinding Wheels
At Jain Precision Tools, we provide precision-engineered grinding wheel solutions customized for specific grinding applications, machine configurations, and workpiece materials. To ensure optimum grinding performance, dimensional accuracy, and wheel life, please provide the following technical details while placing your order.
Ordering Procedure
1. Select Wheel Type & Geometry
Choose the appropriate Grinding Wheel Type, Profile, and Geometry from our product catalog based on:
- Grinding Application
- Machine Configuration
- Workpiece Material
- Surface Finish Requirement
- Production Volume
- Operating Parameters
Available wheel configurations include:
- Straight Wheels
- Cup Wheels
- Dish Wheels
- Cylindrical Wheels
- Segment Wheels
- Internal Grinding Wheels
- Centerless Grinding Wheels
- Custom Profile Wheels
Selection should be based on:
- Peripheral Grinding
- Surface Grinding
- Tool & Cutter Grinding
- Cylindrical Grinding
- Internal Grinding
- Creep Feed Grinding
- Precision Finishing Operations
2. Specify Wheel Dimensions
Please mention wheel dimensions in the following standard format:
Diameter × Thickness (Width) × Bore Size × Recess / Imp. Depth
Example:
300 × 25 × 127 × 10 mm
Where:
| Parameter | Description |
|---|---|
| Diameter (D) | Outside Wheel Diameter |
| Thickness (T) | Wheel Width / Face Width |
| Bore (H) | Mounting Hole Diameter |
| Recess Depth | Imp./Recess Depth if applicable |
All dimensions should be specified in:
- Millimeters (mm)
- Inch dimensions (if required)
- Tolerance requirements (where applicable)
3. Select Wheel Specification
Determine the appropriate grinding wheel specification based on process requirements and operating conditions.
Required Technical Parameters
Please provide the following details for accurate wheel selection:
- Workpiece Material
- Material Hardness (HRC/HB)
- Grinding Operation Type
- Surface Finish Requirement (Ra Value)
- Stock Removal Rate
- Wheel Speed (RPM / m/s)
- Feed Rate
- Coolant Type
- Machine Power & Spindle Details
- Contact Area
- Production Quantity
Standard Wheel Specification Parameters
| Parameter | Description |
|---|---|
| Abrasive Type | Aluminium Oxide / Silicon Carbide / CBN / Diamond |
| Grain Size | Coarse to Fine Finish Requirement |
| Grade | Wheel Hardness |
| Structure | Grain Spacing / Porosity |
| Bond Type | Vitrified / Resin / Metal / Rubber |
Application Engineering Support
If specification selection is not finalized, customers can submit the Grinding Application Data Sheet with process details. Our technical engineering team will:
- Analyze the grinding application
- Recommend optimized wheel specifications
- Improve grinding efficiency
- Enhance wheel life and surface finish
- Reduce cycle time and grinding defects
This ensures the supplied grinding wheel is precisely matched to your machining application and production requirements.
Industries We Serve
Grinding wheels from Jain Precision Tools are widely used in:
- Automotive Manufacturing
- Aerospace Components
- Tool Rooms
- Bearing Industries
- Die & Mold Manufacturing
- Steel Processing
- Precision Engineering
- Medical Component Manufacturing
Why Choose Jain Precision Tools?
- Precision Engineered Grinding Solutions
- Customized Wheel Specifications
- Technical Application Support
- Consistent Quality & Performance
- High Material Removal Efficiency
- Superior Surface Finish Capability
- Reliable Delivery & Service Support
For technical assistance, custom wheel development, or application-specific recommendations, contact our engineering team for optimized grinding solutions.
