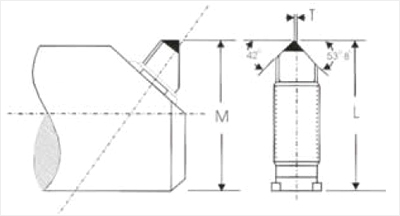

T = Tool Point Offset is on the Right of centre of cartridge
Note: * All dimension in mm, * 12° top rake can be used Alluminium. * All specifications subject to change without notice. * All left cartidges will have same tool Geometry. * Ordering please specify PCD or CBN
Note: * All dimension in mm, * 12° top rake can be used Alluminium. * All specifications subject to change without notice. * All left cartidges will have same tool Geometry. * Ordering please specify PCD or CBN
Microbore No. |
M. Min Bore |
Length |
T |
M1 A2 |
16.1 |
14.2 |
0.4 |
M1 B2 |
13.4 |
11.4 |
0.4 |
M2 A2 |
21.1 |
19.9 |
0.4 |
M2 B2 |
18.8 |
16.8 |
0.4 |
M3 A2 |
26.1 |
25.5 |
0.8 |
M3 B2 |
23.1 |
21.5 |
0.8 |
M5 A2 |
41.4 |
39.8 |
1.2 |
M5 B2 |
35.8 |
33.4 |
1.2 |
M7 A2 |
58.8 |
55.7 |
1.6 |
M7 B2 |
53.3 |
49.3 |
1.6 |
