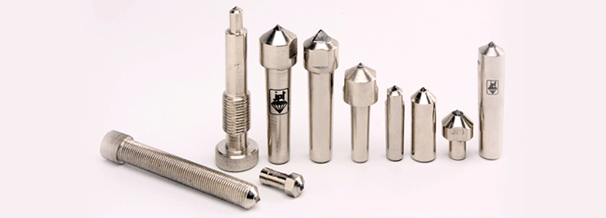

Single Point Diamond Dressers

The Single Point Diamond Dresser is more versatile which is used for truing and dressing purpose of grinding wheel. The diamond for the single point dressing tools are selected for their structural strength, degree of sharpness & lack of detrimental flaws. The proper selection of single point diamond dresser depends on the dimension of grind hardness, grit size and abrasive type.

Single Point Diamond Dressing Tools Grade:
'A', 'B', 'C': These Stones are Bruted Type Commercial Quality diamonds.
'AA' Class: These Stones are natural polished stones.
'AAA' Class: These are premium grade Gem quality natural diamonds with 2-3 workable points.

Diamond Carat Selection Formula:
1 Carat = 0.2g
(r+R)x0.004 = Carat Size Of Diamond
(Radius+Grinding Wheel Depth)x0.004 = Carat Size Of Diamond

Application tips :
bullet.gif The diamond point should contact the grinding wheel slightly below its center and at an inclination of
  10-15�.
bullet.gif In feed increments of up to approx. 0.01-0.03 mm per dressing operation are possible.
bullet.gif Cooling improves the dressing results considerably and is mandatory for exacting dressing requirements.
  A strong and continuous flow of cooling medium must be fed to the contact zone prior to the beginning
  of the dressing process.
bullet.gif Shock-like cooling may destroy the diamond.
bullet.gif There must be a perfect fit between the holder of the diamond dressing tool and the dressing
  device. Otherwise dimensionally stable dressing with a ture profile is not possible. There is also a risk
  of the diamond being damaged.
bullet.gif Carefully place the diamond on the grinding wheel.

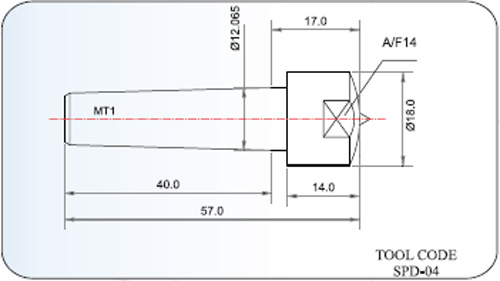

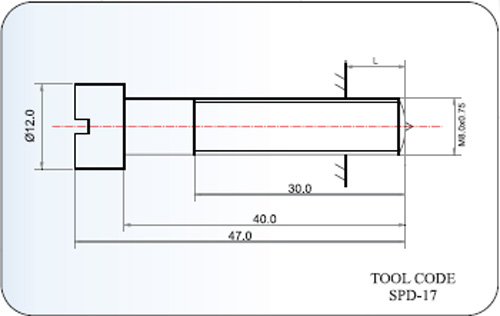

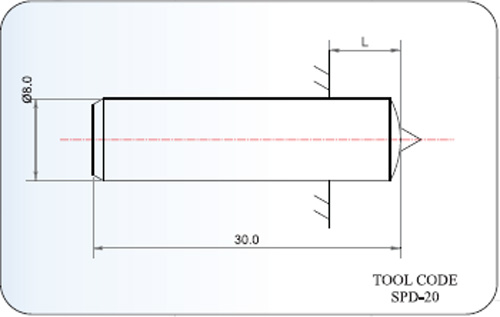

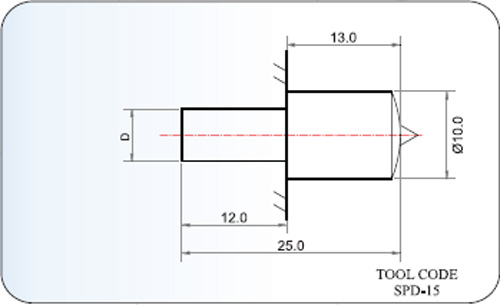

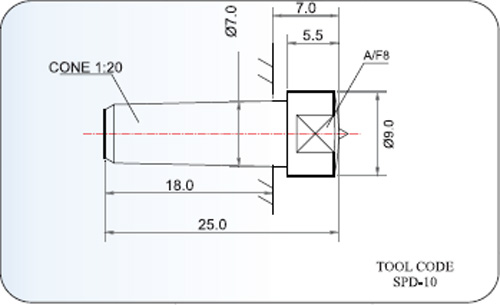

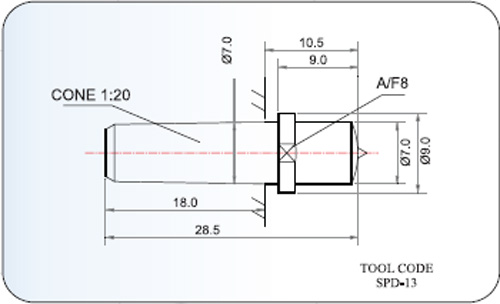

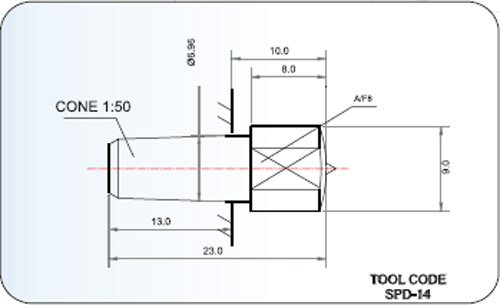

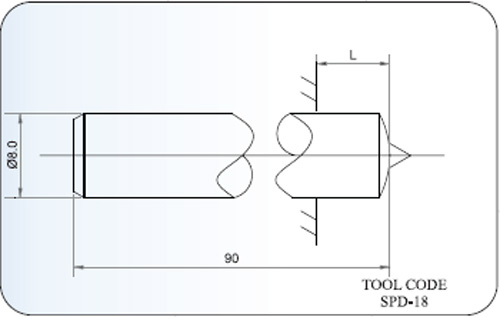

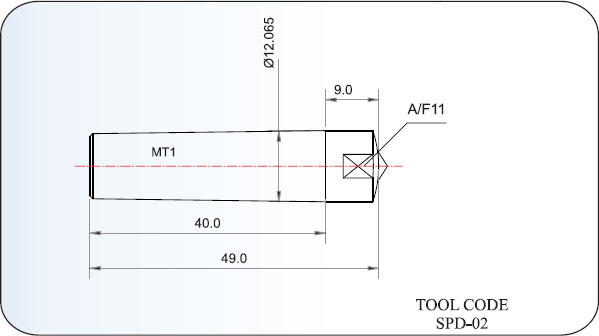

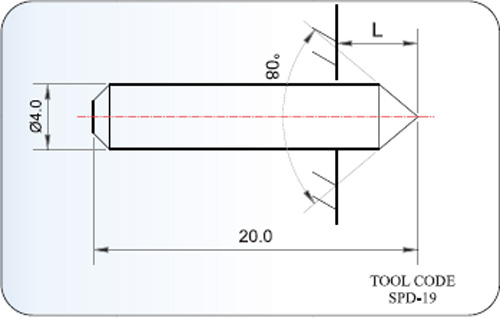

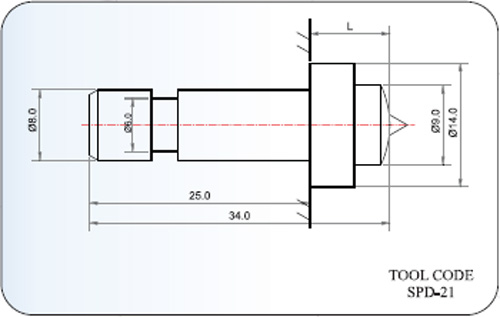

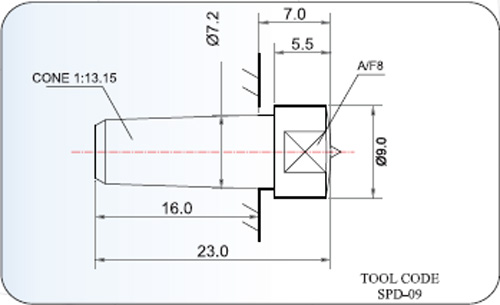

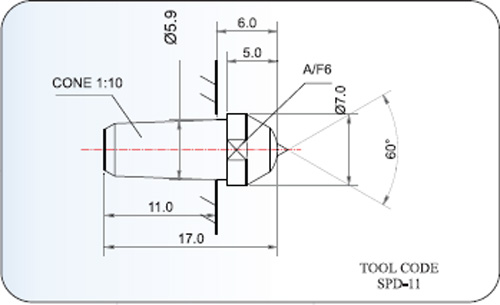

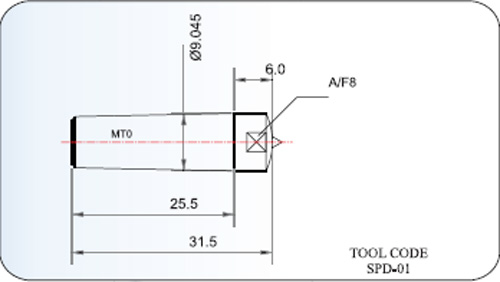

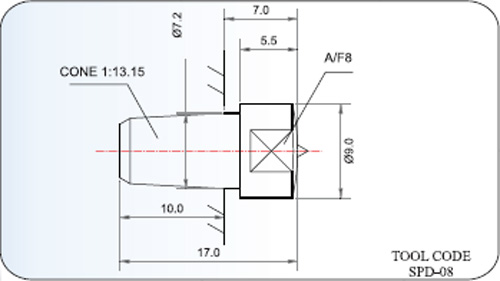

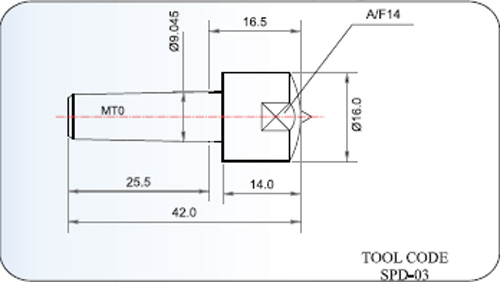

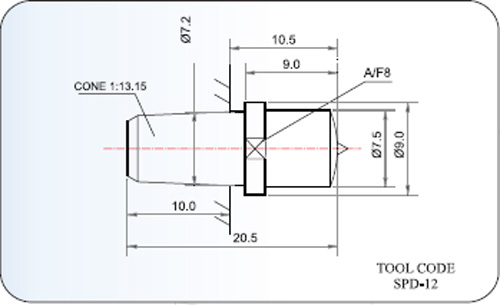

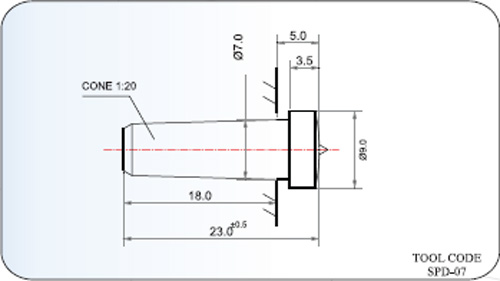

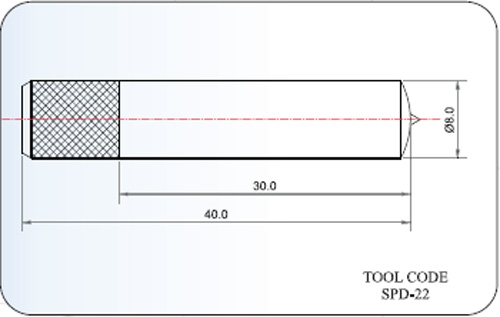

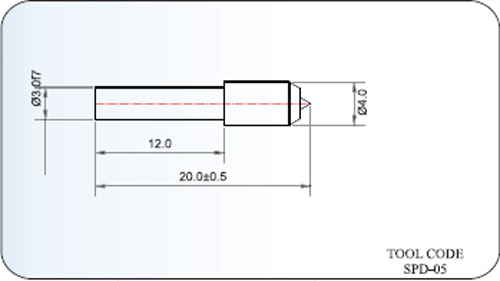

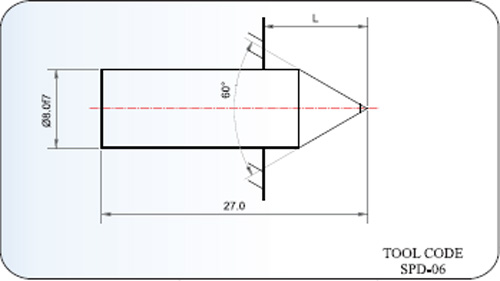

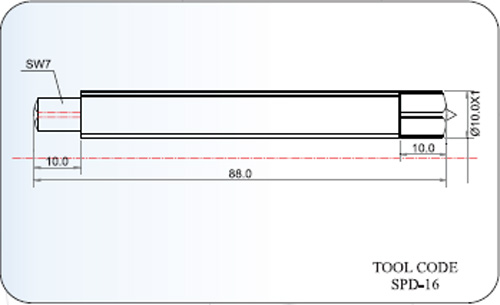

Technical Drawings
