   Diamond Dressers > Chisel Type Diamond Dressers
Chisel Type Diamond Dressers

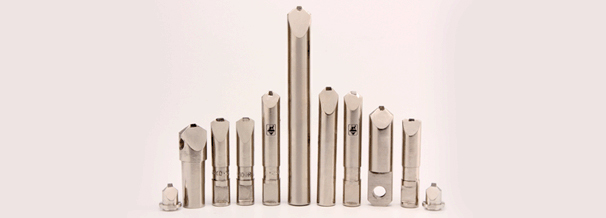

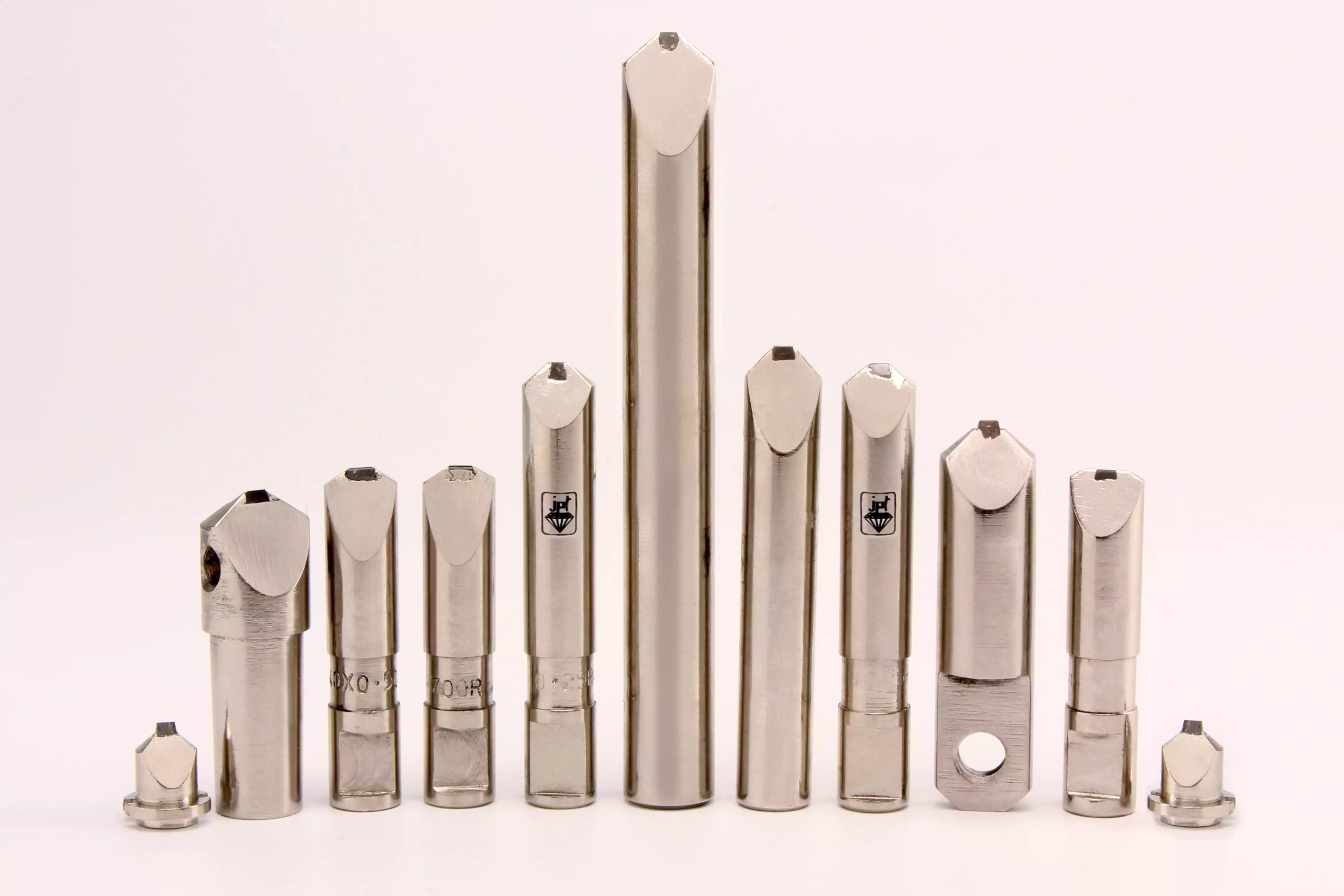

Chisel Type diamond dressers

For Dressing of profile wheels, shaped diamond tools in the form of Chisel Type, Cone, Cubes etc are produced as per specifications. Thread Grinders, Form Grinders, Diaforms and other machines. Nose radius can be on specific enquiry and other details.

bullet.gif There must be a perfect fit between the holder of the diamond dressing tool and the dressing
   device. Otherwise dimentionally stable dressing with a true profile is not possible.
bullet.gif Carefully place the diamond on the grinding wheel.
bullet.gif Cooling results considerably improves the dressing and dressing is mandatory for exacting requirements.
   A strong and continuous flow of cooling medium must be fed to the contact zone prior to the beginning
   of the dressing process. Shock-like cooling may destroy the diamond.
bullet.gif Dressing is performed at a normal or reduced grinding wheelspeed.
bullet.gif The increment by dressing infeed stroke may very from about 0.01 to 0.03 mm.

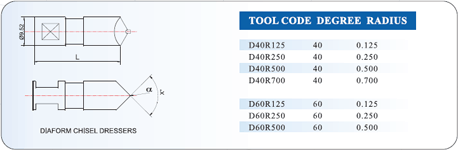

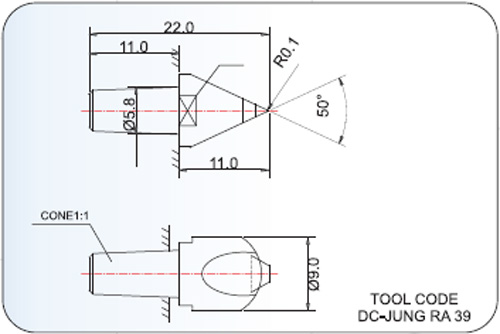

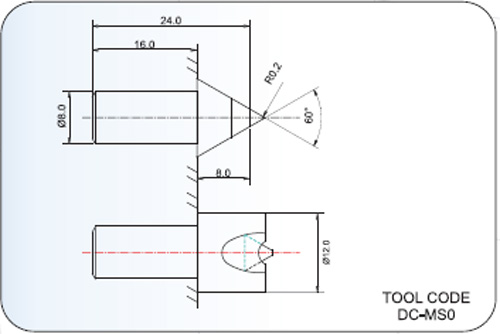

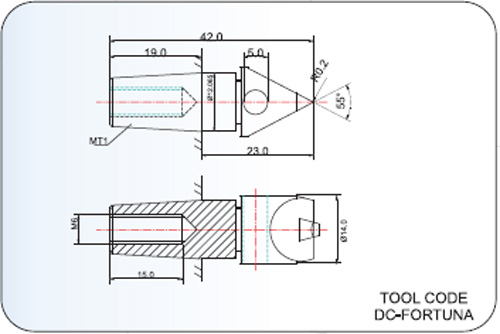

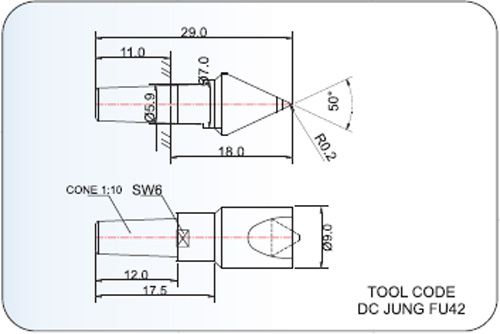

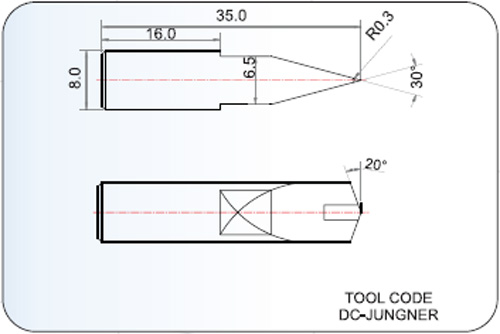

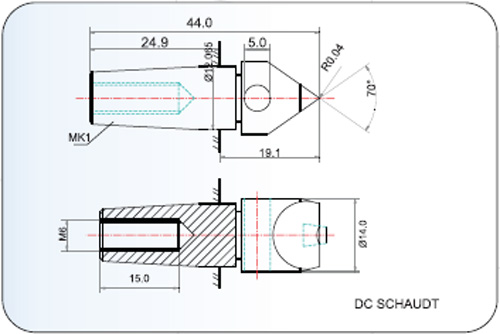

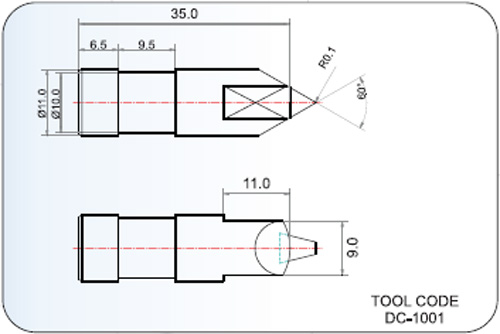

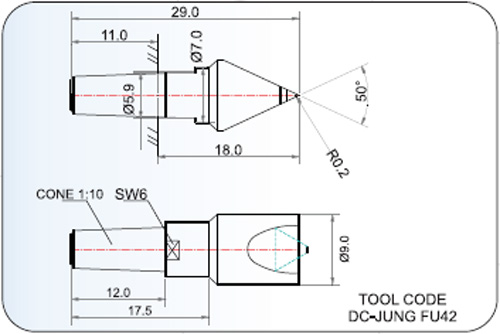

Technical Drawings

Chisel-drawing1.gif Chisel-drawing2.gif Chisel-drawing3.gif Chisel-drawing4.gif Chisel-drawing5.gif Chisel-drawing6.gif Chisel-drawing7.gif Chisel-drawing8.gif Chisel-drawing9.gif
